KXAT280 CRPA

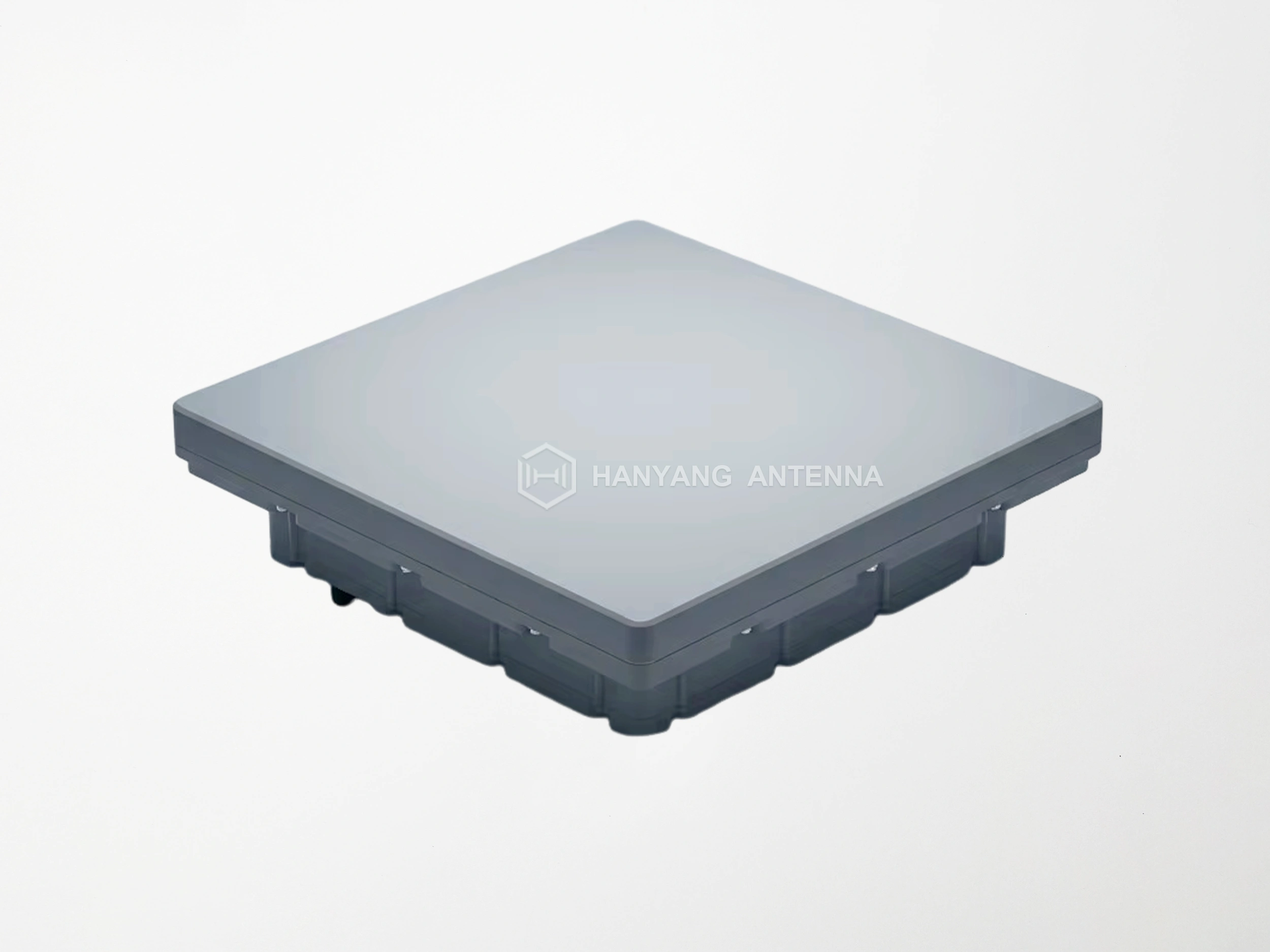

KXAT280_16B1L1E1 is a CRPA (Controlled Reception Pattern Antenna) protected antenna, capable of receiving, down-converting, filtering, and processing 16 channels of BDS_B1, GPS_L1, and GAL_E1 signals. It consists of three parts: an antenna array, an RF module, and a processing module. It has protection capabilities against abnormal electromagnetic signals from fifteen directions. It is suitable for various scenarios sensitive to electromagnetic environments and reliant on high-precision positioning, significantly enhancing the stability of positioning equipment in complex electromagnetic environments.

Description

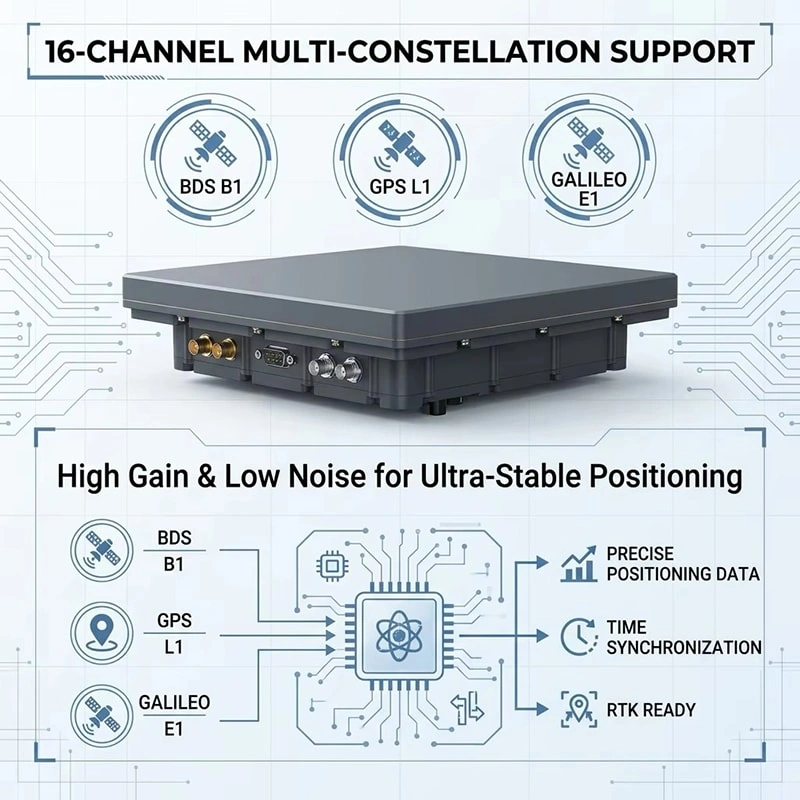

Tri-Band Multi-Constellation Support: Seamlessly receives and processes 16 channels of BDS_B1, GPS_L1, and GAL_E1 signals for comprehensive global navigation coverage.

15-Directional Signal Integrity Protection: Effectively shields against abnormal electromagnetic signals from up to 15 distinct directions, ensuring robust performance in complex environments.

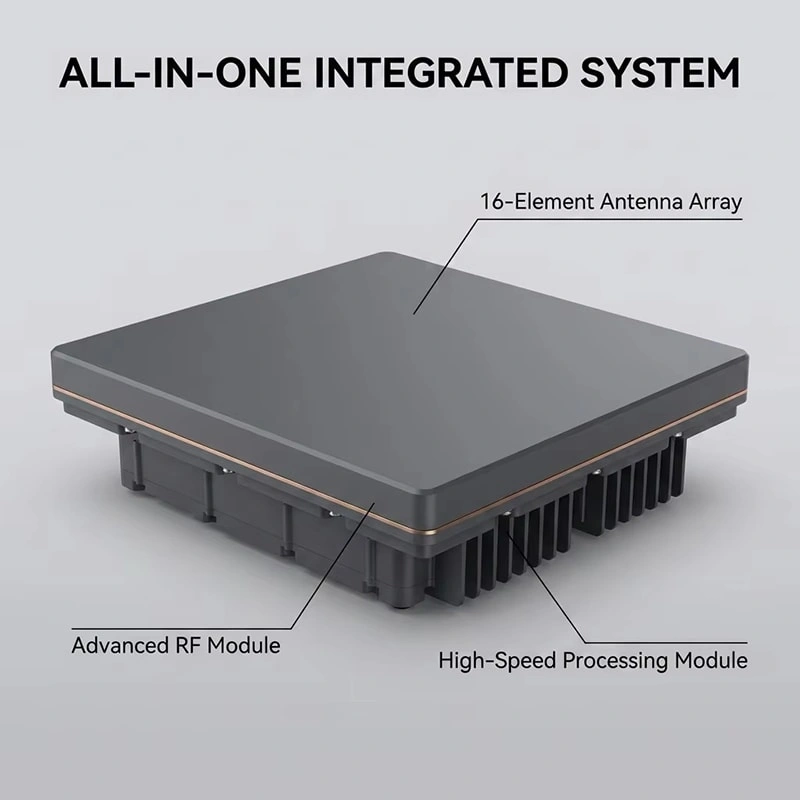

Highly Integrated 3-Part Architecture: Combines the antenna array, RF module, and processing module into a streamlined design for simplified deployment and reliable operation.

Enhanced Positioning Stability: Significantly improves the reliability and accuracy of positioning equipment in electromagnetically sensitive and challenging environments.

Advanced Signal Processing: Features comprehensive signal reception, down-conversion, and filtering capabilities to deliver high-precision navigation data.

Specification

Main Technical Specifications
Antenna Array	Signal Processing
•Antenna Elements: 16-channel B1/L1/E1 array; •Input Frequency: BDS_B1: 1561.098MHz ± 2.046MHz; GPS_L1: 1575.42MHz ± 1.023MHz; GAL_E1: 1575.42MHz ± 12.276MHz.	•RF Output Power: -55dBm to -75dBm; •Signal Types: Wideband, narrowband, frequency sweep, pulse, etc.; •Simultaneous Processing Directions: 15; B1, L1, E1 Signal Processing Performance: •RF Output Power: -55dBm to -75dBm; •Signal Types: Wideband, narrowband, frequency sweep, pulse, etc.; •Simultaneous Processing Directions: 15;


Positioning Performance (Optional)	Reliability
•Cold Start Time: ≤ 60s (including self-test time); •Hot Start Time: ≤ 10s; •Reacquisition Time: ≤ 2s (within 5s of lock loss); •Positioning Accuracy: ≤ 10m; •Velocity Accuracy: ≤ 0.2m/s; •Anti-spoofing Capability (Optional).	•Mean Time Between Failures (MTBF) ≥ 5000 hours; •Mean Time To Repair (MTTR) ≤ 30 minutes; •Continuous Operation Time: ≥ 24h.


Environmental Adaptability
•Operating Temperature: -40°C to +70°C, 10% to 90% RH (non-condensing); •Storage Environment: -45°C to +80°C, 10% to 95% RH (non-condensing); •Waterproof Rating: IP65.

Power Supply and Power Consumption	Weight
•Input Voltage: +20V to +32V; •Power Consumption: ≤ 45W.	≤ 3500g

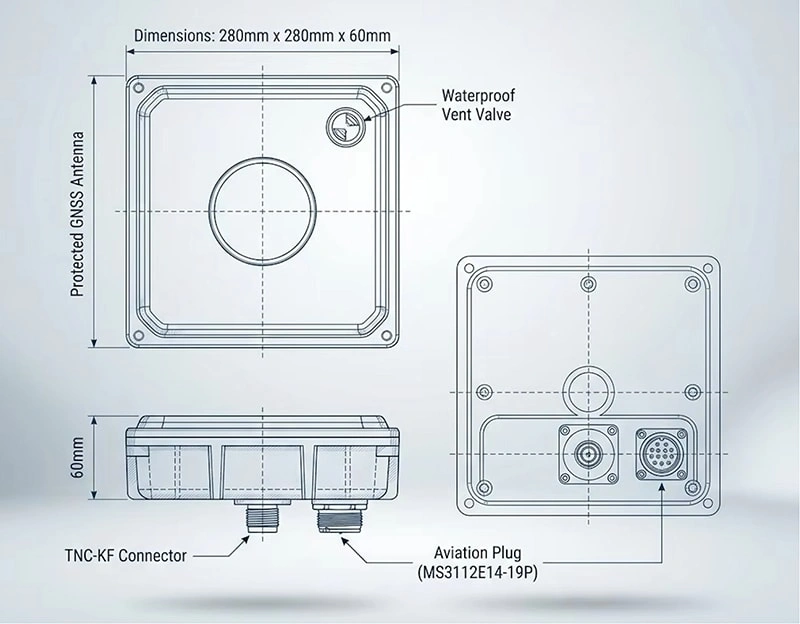

Interfaces and Mechanical Dimensions
Interface
•Onboard RF Interface: TNC-KF; •Power/Data Interface: MS3112E14-19P, pin definitions are as follows:

No.	Pin Definition	Signal Description	Remarks
1	+20V~+32V	Power Input	Power Port
2	+20V~+32V	Power Input	-
3	GND	Power Ground	-
4	GND	Power Ground	-
5~13	NC	NC	Reserved
14	TTL_TX	TTL Data Transmit	Navigation Data Port, Default 115200bps
15	GND	Signal Ground	-
16	TTL_RX	TTL Data Receive	-
17~19	NC	NC	Reserved
